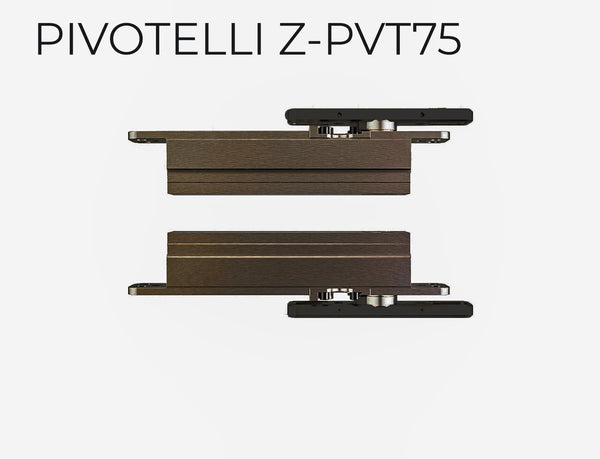

Self-Closing Pivot Hinge Closer kit Z-PVT75 PIVOTELLI series

Ideal for FRONT ENTRY & INTERNAL DOORS 35mm thick & up to 1250mm Wide

designed to be mounted on top of a finished surface without the need for any built-in fixtures.

Suitable for Medium Duty Door Applications where a self closing swing pivot door is required & you'd like to avoid floor cut outs and top of frame cut-outs.

Many of the current self closing options avail at the moment require 45mm door thickness. This set can easily be used on doors 35mm thick . The Offset axis option allows better flexibility with door widths and openings.

Specifications:

• Suitable for doors weighing up to 75kg
• Ideal for doors up to 1250mm wide
• Will suit 38-50mm thick doors
• Self-closing with adjustable speed and closing force
• Fitted with 480N dampers
• Surface mounted bottom pivot foot
• Surface mounted top fixing
• Hold open function at 90 degrees
• Fixing screws, along with adjustment tools included

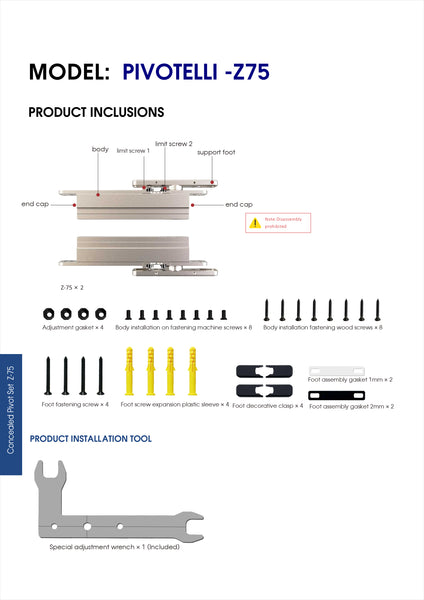

What's Included:

-  2 x Surface mounted adjustable pivot base and top

-  2 x Adjustable Hydraulic pivots

- 2 part top pivot set with fully adjustable adjustable bearings

- 2 x Matt Black cover plates for top & bottom pivots

- all fixing screws

Ideal for Front entry and internal doorways where floor and overhead cutouts not desired.

Do I need to buy any other parts?

The PIVOTELLI -Z75 is a complete package and you will only need the door and lock of your choosing

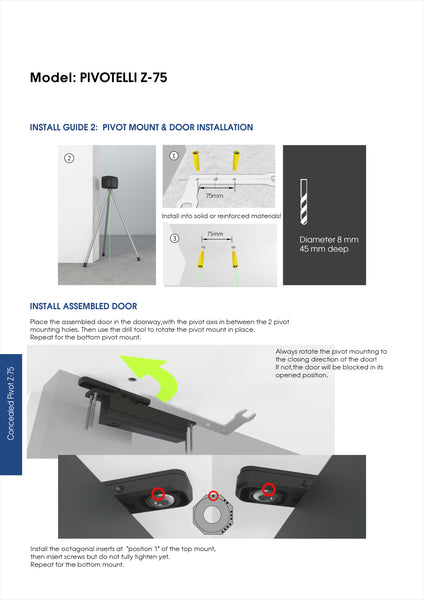

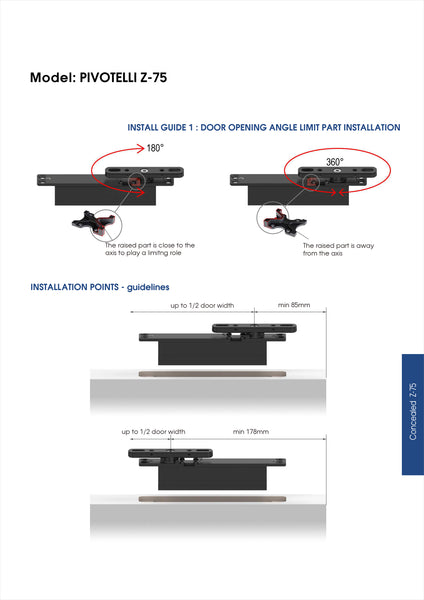

INSTALLATION?

we would recommend installation by an experienced carpenter

MODEL NO: Z-PVT75 PIVOTELLI

Don't compromise with your beautiful door using lower grade pivot hinge sets buy the Z-PVT75 PIVOTELLI set now
