Self closing Pivot Door hinge set for internal doors
Self-Closing Pivot Door Hinge Set
Self-Closing Pivot Door Hinge Set
Self-Closing Pivot Door Hinge Set
Self-Closing Pivot Door Hinge Set
Self-Closing Pivot Door Hinge Set
Self-Closing Pivot Door Hinge Set
Z-PVTH-SC

Self-Closing Pivot Door Hinge Set

$95.00 $0.00
Tax included. Shipping calculated at checkout.



Ideal for Residential applications

Suitable for Doorways where a self-closing pivot door is required with Timber doors up to 920mm wide.

Do I need to buy any other parts?

The Z-PVTH-SC is a complete package and you will only need the door and handle of your choice

INSTALLATION?

we would recommend installation by an experienced carpenter

MODEL NO: Z-PVTH-SC

Specifications:

  • Suitable for doors weighing up to 60kg
  • Ideal for doors up to 920mm wide
  • Will suit 35-40mm thick doors
  • Self-closing with adjustable speed and closing force
  • Surface mounted bottom pivot foot
  • Hold open function at 90 degrees
  • Fixing screws included

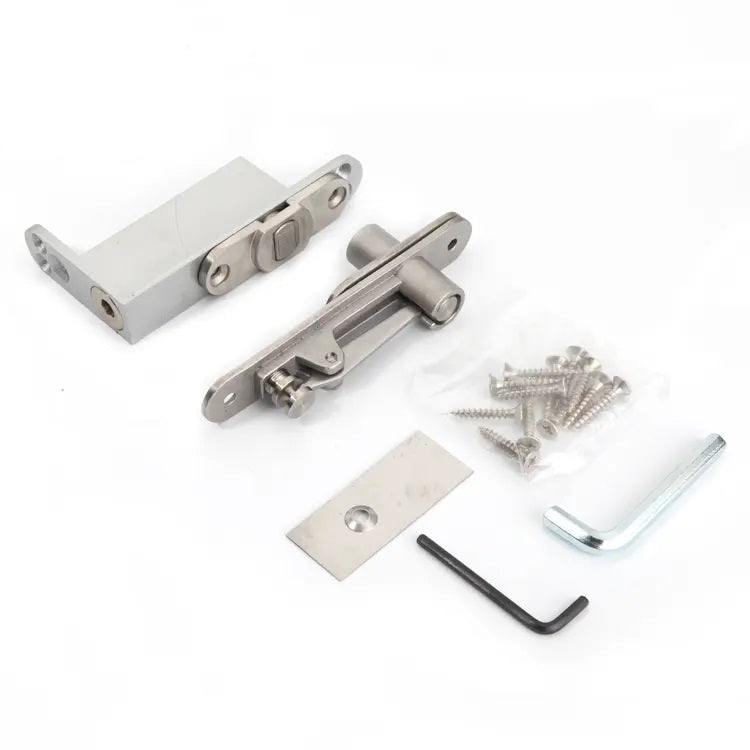

What's Included:

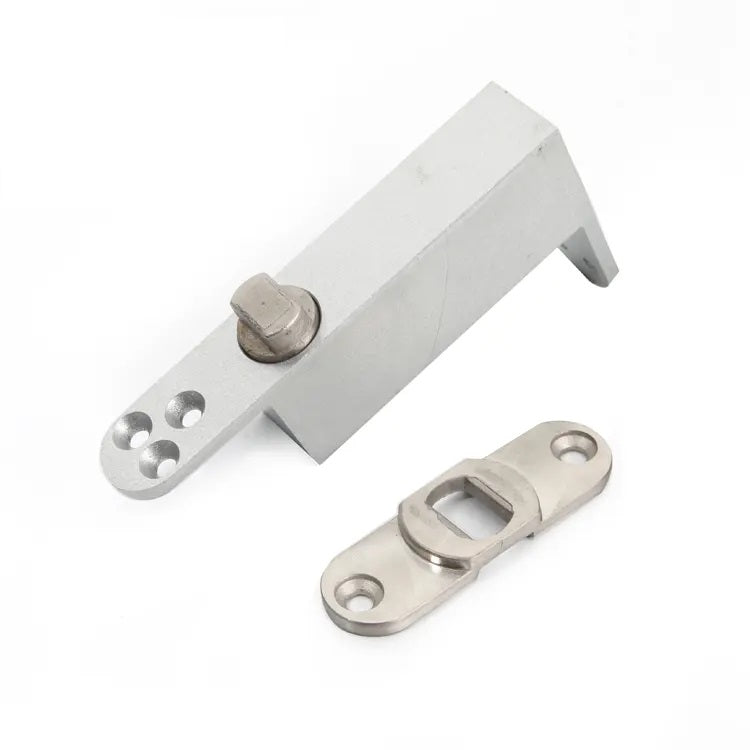

- Surface mounted pivot foot

- Adjustable pivot closer with stainless steel side cover plate

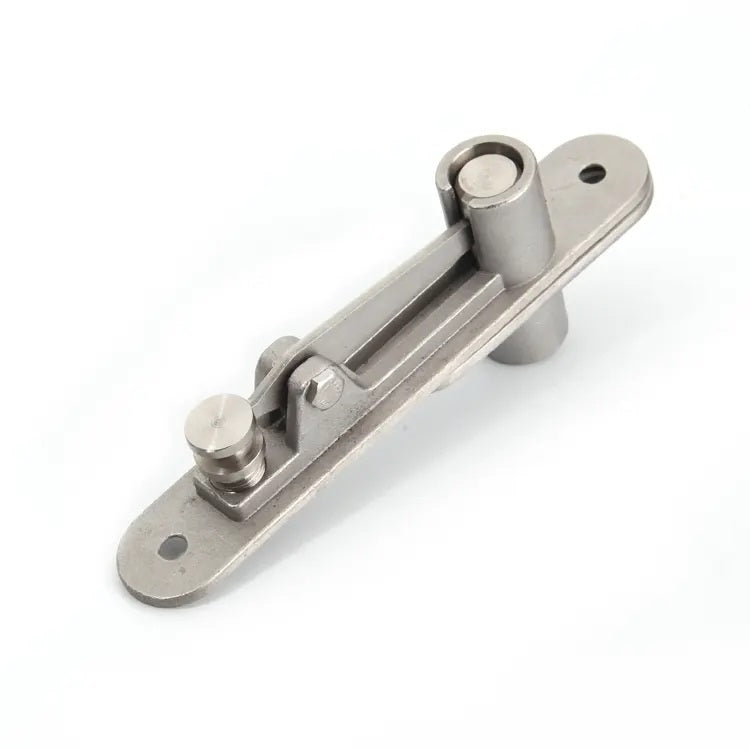

- 2 part top pivot set

- all fixing screws

Ideal for internal doorways where floor cut-outs not required.

Buy the Z-PVTH-SC set now

Note: Door not included.


Need a pivot set to suit commercial applications? Check out our Heavy duty Pivot hinge set Z-PVTH-985-400 and Z-PVTH-220MD-SC
